Question 95
Computer Awareness
Boolean algebra
Hard
<p style="">Consider the following min term expression for F.</p> <p style="">F (P, Q, R, S) = ∑ ( 0, 2, 5, 7, 8, 10, 13, 15 )</p> The min-terms 2, 7, 8 and 13 are ‘do not care’ terms. The minimal sum-of-products form for F is
(A) QS̅ + Q̅ S
(B) Q̅S̅ + QS
(C) Q̅R̅S̅ + Q̅RS̅+ QR̅S + QRS
(D) P̅Q̅S̅ + P̅QS + PQS + PQ̅S̅
View Dynamic Solution & Explanation ▼

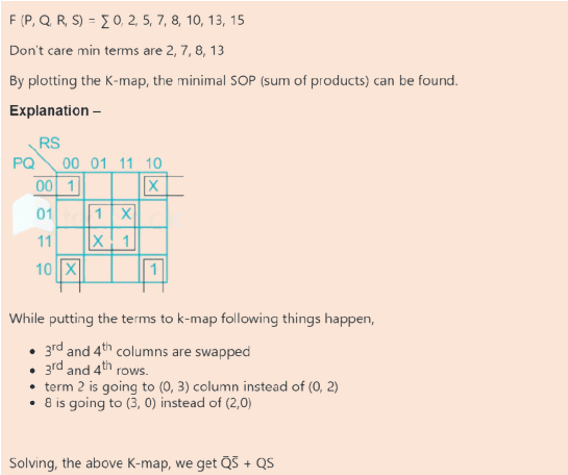

Correct Solution: Option B
Step-by-step Solution:
No explanation entered yet.
